제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 강철 말뚝 울타리 펜싱 | 핵심 단어: | 강철 방어벽 울타리, 등반 방지 방어벽 울타리, 용융 아연도금 해안 울타리 |
|---|---|---|---|
| 재료: | Q235 저탄소강(W 단면 두께: 2.5-4.0mm) | 부식방지 공정: | 용융아연도금(700g/㎡) + 정전분체도장 |
| 스파이크 유형: | 3-스파이크 / 5-스파이크(높이 150mm, EN 1522-5 클래스 A) | 바 간격: | ≤11cm(주거용 어린이 안전)/ 12cm(산업용) |
| 크기 범위: | 높이 1.2-3.0m; 패널 길이 2.75m(맞춤 곡선 사용 가능) | 어플리케이션: | 산업 구역, 주거 구역, 해안 도시 프로젝트, 높은 보안 구역 |
| 강조하다: | narrow bar spacing steel fencing,child-safe palisade fencing,residential steel palisade fence |
||

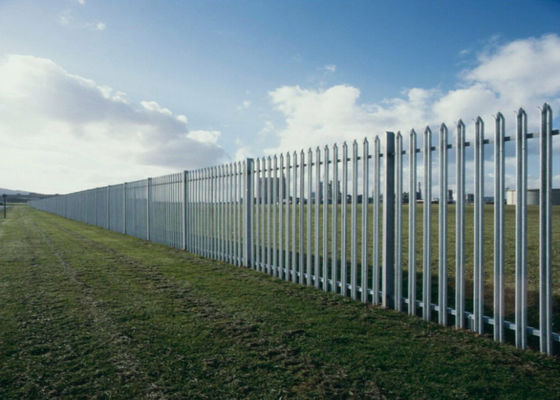

Narrow Bar Spacing Steel Palisade Fencing Child-Safe For Residential Area
Steel palisade fencing - The Integration of European Aesthetics and High-End Protection:
This Steel Palisade Fencing is optimized for B2B perimeter protection demands, integrating structural durability and scene-specific safety. It adopts a streamlined W-section design (no redundant decorations) to enhance impact resistance: the 4.0mm thick panel for high-security zones can withstand 150kg-level collisions, while the 2.5mm panel for residential areas balances lightness and stability.For coastal municipal projects, the dual anti-corrosion process (hot-dip galvanizing + electrostatic powder coating) passes 1200-hour salt spray tests (ASTM B117 standard), ensuring no rust for 25 years in high-salt environments—30% longer than single-coated fences. For residential scenarios, we narrow the bar spacing to ≤11cm, strictly complying with child fall-prevention standards, which solves the safety pain point of ordinary fences.
Specification Table:
| Item | Parameter |
|---|---|
| W-Section Thickness | 2.5mm (residential) / 4.0mm (high-security) |
| Post Size | 80×80×3.0mm(residential)/ 120×120×5.0mm(high-security) |
| Anti-Climb Standard | EN 1522-5 Class A |
| Installation Time | ≤5 mins per panel (tool-free) |
Advantages:
Scene-Customized Safety:The 3-spike top design blocks tool-assisted climbing for industrial zones; the ≤11cm bar spacing eliminates child fall risks for residential areas—covering diverse safety needs.
Long-Lasting Corrosion Resistance:The 700g/㎡ hot-dip galvanized layer forms a dense protective film, and the electrostatic powder coating (80-120μm thick) resists UV aging—ideal for coastal and outdoor projects.
Key Production Process:
Panel Forming:Q235 steel plates are cut into 2.4-3.0m lengths, then bent into arc-shaped panels by CNC machines—ensuring consistent curvature.
Double Anti-Corrosion Treatment:- Galvanizing: Panels/columns are hot-dipped in 450℃ molten zinc for 4 minutes, forming a uniform zinc layer. - Spraying: Electrostatic spraying of European-style matte paint, then cured at 200℃ for 25 minutes—coating adhesion ≥5MPa.
Application & Service:
It is widely used in industrial perimeters, residential communities, coastal municipal landscapes, and high-security zones. We provide free CAD drawings for custom curved fences and 24-hour technical consultation; bulk orders include on-site installation guidance to ensure construction efficiency.
