제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 358 보안 펜싱 | 핵심 단어: | 항 -Climb 방지 울타리 |
|---|---|---|---|
| 용접 강도: | 범위 540–690 N/M2. | 패널 높이: | 1.2m-6m (제안 크기 : 2m/2.4m/3m) |
| 수평방향 와이어: | 3.5mm | 신청: | 고위안보구역 |
| 너비: | 2.5m | 재료: | 아연 도금 강선 |
| 마무리 손질: | 직류 전기로 자극된, 파우더는 코팅했습니다, PVC가 코팅했습니다 | 보안 수준: | 항-절단, 반 절단 |
| 프로세스: | 직조 및 용접 | 견본: | 무료로 |
| 강조하다: | 358 anti-climb security fencing,galvanized steel security panels,anti-cut 358 fence panels |
||
| Attribute | Value |
|---|---|
| Product Name | 358 Security Fencing |
| Key Features | Anti-climb, anti-cut fence |
| Welded Strength | 540–690 N/m² |
| Panel Height | 1.2m-6m (Recommended: 2m/2.4m/3m) |
| Horizontal Wire | 3.5mm |
| Application | High security areas |
| Width | 2.5m |
| Material | Galvanized steel wire |
| Finishing | Galvanized, powder coated, PVC coated |
| Security Level | Anti-Climb, Anti-Cut |
| Process | Weaving and Welding |
| Sample | Available for free |

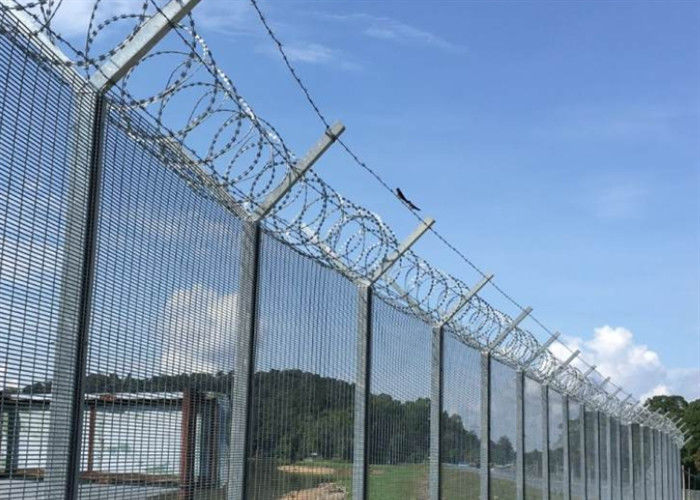

The 358 security mesh is the ultimate security fencing system, also known as the wire-wall system. Its design makes it extremely difficult to cut through using conventional wire cutters, offering maximum security and anti-corrosion protection.
With its 4mm wire diameter and rectangular mesh configuration, the panel provides excellent visibility while resisting vandalism. The finger and toe-proof mesh pattern classifies it as an anti-climb system, making it ideal for high-risk areas. This system is extensively used by the Ministry of Defence around high-security sites.
The mesh size is 76.2×12.7mm (center to center), with horizontal wire spacing of 12.7mm and vertical wire spacing of 76.2mm. The fencing offers superior anti-corrosion performance, anti-aging properties, aesthetic appeal, and easy installation.
| Specification | 2.1m | 2.4m | 3.0m |
|---|---|---|---|
| Panel height | 2134mm | 2438mm | 2997mm |
| Panel width | 2515mm | 2515mm | 2515mm |
| Mesh size | 12.7 x 76.2mm | 12.7 x 76.2mm | 12.7 x 76.2mm |
| Horizontal wire | 4mm | 4mm | 4mm |
| Vertical wire | 4mm | 4mm | 4mm |
| Panel weight | 50kg | 57kg | 70kg |
| Posts | 60 x 60 x 3 mm | 60 x 60 x 3 mm | 80 x 80 x 3 mm |
| Post length | 2.8m | 3.1m | 4.0m |
| Clamp bar | 40 x 6 m slotted | 40 x 6 m slotted | 40 x 6 m slotted |
| Fixings | 8 galv bolt c/w Permacone security nut | ||
| No. of fixings | 8 | 9 | 11 |
