제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 금속 타워 포장 | 핵심 단어: | 무작위 포장 |
|---|---|---|---|
| 재료: | 스테인레스 강 304 / 316 | HS 코드: | 8419909000 |
| 특징: | 저압 강하, 고효율 | 공허분율: | 높은 |
| 성능: | 열 내성 | 압력 강하: | 낮은 |
| 로딩 포트: | Xingang 포트 | 크기: | 사용자 정의 |
| 강조하다: | Stainless Steel 304 metal pall ring,316 stainless steel distillation packing,metal random packing with warranty |
||
| Attribute | Value |
|---|---|
| Product Name | Metal Tower Packing |
| Key Word | Random Packing |
| Material | Stainless Steel 304 / 316 |
| Hs Code | 8419909000 |
| Feature | Low Pressure Drop, High Efficiency |
| Void Fraction | High |
| Performance | Heat-resistant |
| Pressure Drop | Low |
| Port Of Loading | Xingang Port |
| Size | Customized |

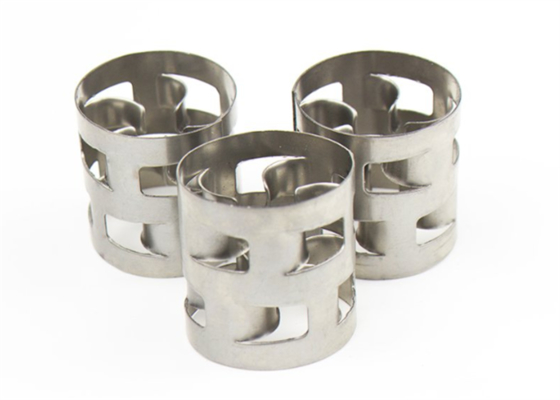

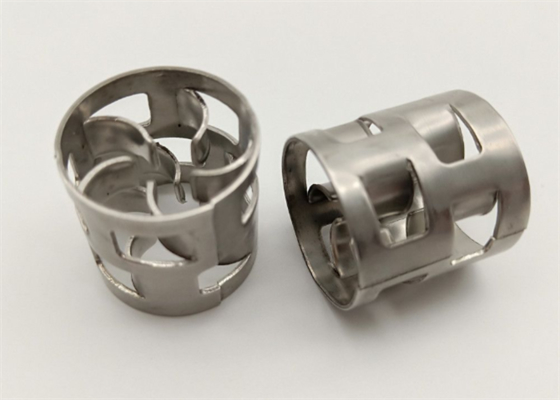

The Metal Pall ring is a highly efficient packing material designed for vacuum distillation processes, offering optimal surface area and void space for superior heat transfer. These rings are also widely used in various industrial applications including wet scrubbers for gas absorption, cooling towers, mist eliminators, gas absorption columns, gas strippers, and air washers.
| Parameter | Value |
|---|---|
| OEM | Yes |
| Hs Code | 8419909000 |
| Size | Customized |
| Material | Stainless Steel 304 / 316 |
| Performance | Heat-resistant |
| Port Of Loading | Xingang Port |
| Pressure Drop | Low |
| Feature | Low Pressure Drop, High Efficiency |
| Key Word | Tower Packing / Random Packing |
| Void Fraction | High |
| Model | Size D*H*δ/mm | No. Per Volume n/m3 | Specific Area m2/m3 | Void Volume % | Drying Packing Factor m-1 |
|---|---|---|---|---|---|
| Dg16 | 16X16X0.4 | 185000 | 239 | 0.928 | 299 |
| Dg25 | 25X25X0.6 | 51900 | 219 | 0.934 | 269 |
| Dg38 | 38X38X0.8 | 13800 | 129 | 0.945 | 153 |
| Dg50 | 50X50X1.0 | 6500 | 112.3 | 0.949 | 131 |
| Dg76 | 76X76X1.2 | 1830 | 71 | 0.96 | 80 |
