제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 금속 무작위 포장 | 핵심 단어: | 타워 포장 /랜덤 포장 |
|---|---|---|---|
| HS 코드: | 8419909000 | 특징: | 저압 강하, 고효율 |
| 재료: | 스테인레스 강 304 / 316 | 로딩 포트: | Xingang 포트 |
| 크기: | 사용자 정의 | 공허분율: | 높은 |
| OEM: | 예 | 인증: | ISO9001:2015 |
| 강조하다: | Stainless Steel 304 metal random packing,316 stainless steel low pressure drop packing,metal random packing with low pressure drop |
||
| Attribute | Value |
|---|---|
| Product Name | Metal Random Packing |
| Key Word | Tower Packing / Random Packing |
| HS Code | 8419909000 |
| Feature | Low Pressure Drop, High Efficiency |
| Material | Stainless Steel 304 / 316 |
| Port Of Loading | Xingang Port |
| Size | Customized |
| Void Fraction | High |
| OEM | Yes |
| Certification | ISO9001:2015 |

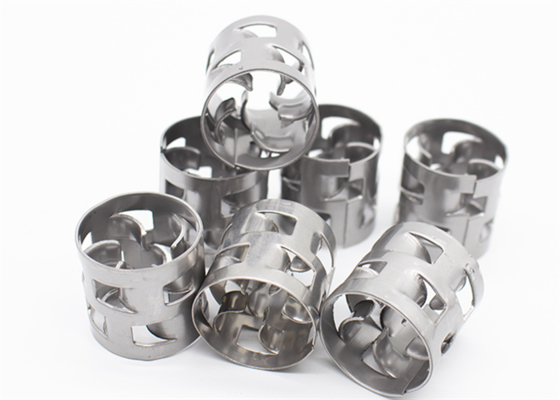

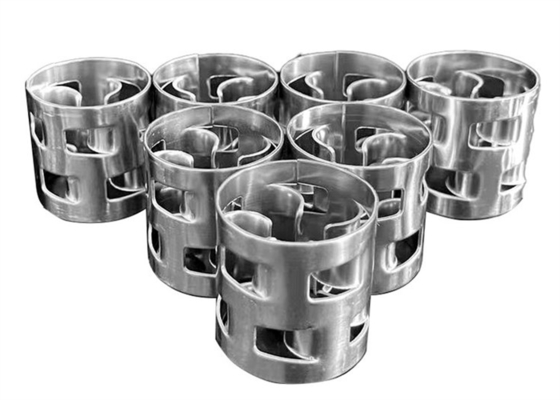

The Metal Pall ring is a highly efficient packing material designed for vacuum distillation processes. Its optimal surface area and void space configuration ensure superior heat transfer performance during operations.
This versatile packing solution is also widely used in:
| Size (mm) | Bulk Density (kg/m³) | Number (per m³) | Surface Area (m²/m³) | Free Volume (%) |
|---|---|---|---|---|
| 16×16×0.3 | 360 | 201000 | 346 | 95.5 |
| 25×25×0.4 | 302 | 51000 | 212 | 96.2 |
| 25×25×0.5 | 400 | 51000 | 216 | 95 |
| 25×25×0.6 | 461 | 51000 | 219 | 94.2 |
| 38×38×0.4 | 218 | 15000 | 143 | 97.2 |
| 38×38×0.5 | 262 | 15180 | 145 | 96.7 |
| 38×38×0.6 | 328 | 15000 | 146 | 95.9 |
| 50×50×0.5 | 194 | 6500 | 106 | 97.5 |
| 50×50×0.8 | 315 | 6500 | 108 | 96.4 |
| 50×50×0.9 | 365 | 6500 | 109 | 95.4 |
| 76×76×0.8 | 205 | 1830 | 69 | 97.4 |
| 90×90×1.0 | 229 | 1160 | 62 | 97.1 |
