제품 상세 정보:
결제 및 배송 조건:
|
| 재료: | 저탄소강 | 와이어 직경: | 3.5 mm,4.0mm,4.5mm |
|---|---|---|---|
| 매쉬의 크기: | 50*200mm 55*200mm 50*150mm 55*100mm | 표면 처리: | 고온 침지는 / PVC 코팅을 활성화했습니다 |
| 특징: | 쉽게, 유지할 수 있는 모이는, 친절한 Eco | 용법: | 정원 울짱, 고속 도로 울타리, 스포츠 울타리, 농가 울타리 |
| 인증: | ISO 9001:2015 | 높이: | 1030mm / 1230mm / 1530mm / 1830mm 또는 요청으로 |
| 길이: | 2000년 mm/2200mm/2500mm/3000mm | 폴드수: | 2/3/4 |
| 강조하다: | 펜스 패널을 만곡시켜 코팅된 pvc,야외 직류 전기로 자극된 벤딩 펜스 패널,3.5 밀리미터가 펜스 패널을 만곡시킵니다 |
||
Product Description
* Material: Low carbon steel wire & Hot dipped galvanized wire
* Processing mode: welded
* Surface treatment:
I. Black wire welded mesh +electro galvanized+ polyester powder & PVC coated;
II. Galvanized welded mesh + polyester powder & PVC coated;
III. Hot dipped galvanized welded mesh + polyester powder & PVC coated.
Panel Specification
| Panel Height | Panel Length | Wire dia | Mesh size | Folds No. |
| H=1.03m | L=2.5m | 4.0mm | 50*200mm | 2 |
| H=1.23m | L=2.5m | 4.0mm | 50*200mm | 2 |
| H=1.53m | L=2.5m | 4.0mm | 50*200mm | 3 |
| H=1.73m | L=2.5m | 4.0mm | 50*200mm | 3 |
| H=2.03m | L=2.5m | 4.0mm | 50*200mm | 4 |
| Color: | RAL6005 Green,RAL7016 Gray, RAL9005 Black, RAL9010 White | |||
|
Post Type
|
Post Size
|
Post Thickness
|
Panel Height
|
Post Height
|
Surface Treatment
|
|
|
50*50mm
60*60mm
|
1.1mm
1.2mm
1.5mm
1.8mm
2.0mm
2.5mm
|
830mm
|
1200mm
|
2.Galvanized tube PVC coated
3.Galvanized tube powder coated |
|
1030mm
|
1400mm
|
||||
|
1230mm
|
1600mm
|
||||
|
1530mm
|
2000mm
|
||||
|
|
40*60mm
60*80mm
|
1830mm
|
2400mm
|
||
|
2030mm
|
2600mm
|
||||
|
2230mm
|
2800mm
|
||||
|
2430mm
|
3000mm
|
Accessories
Product Features
Corrosion Resistance
Aging Resistance
Sunshine Resistance
Weather Resistance
High Strength Durable
Good Rigidity Wonderful Shape, Wild Field of Vision, Easily Install
FAQ
Q: Are you a manufacturer?
A: Yes,we have specialized in this field for about 10 years experience.
Q: Could you provide sample?
A: Yes,we can provide sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepae enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: How do you ship the finished wire mesh?
A:Usually by sea.
Q: What is the payment?
A:We usually use the T/T,L/C,D/P,Western Union.

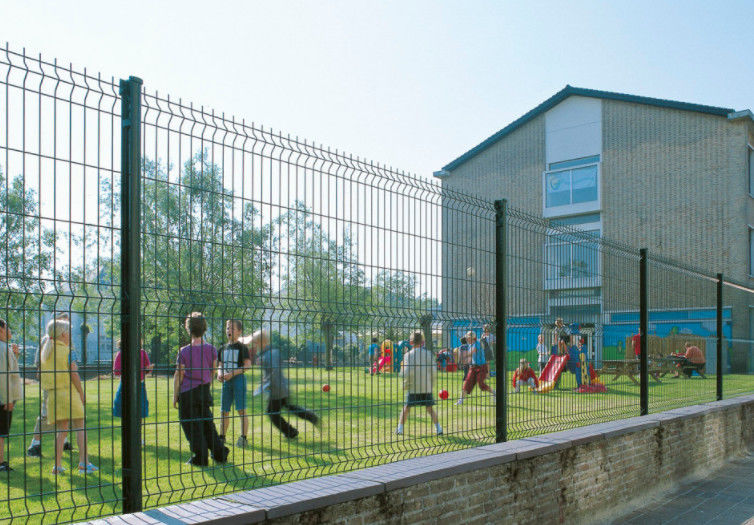

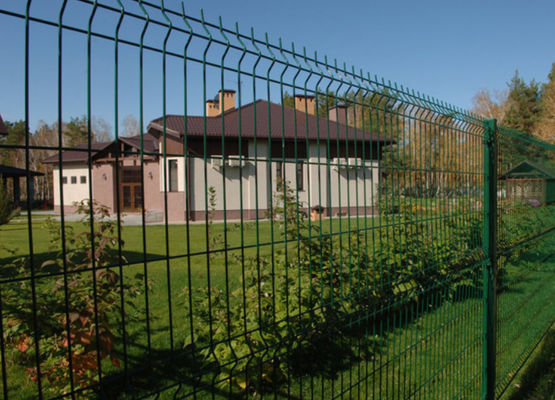

Product Show
